AAA CONNECTORS
AAA SERIES Q-G ? TWIST CONNECTOR

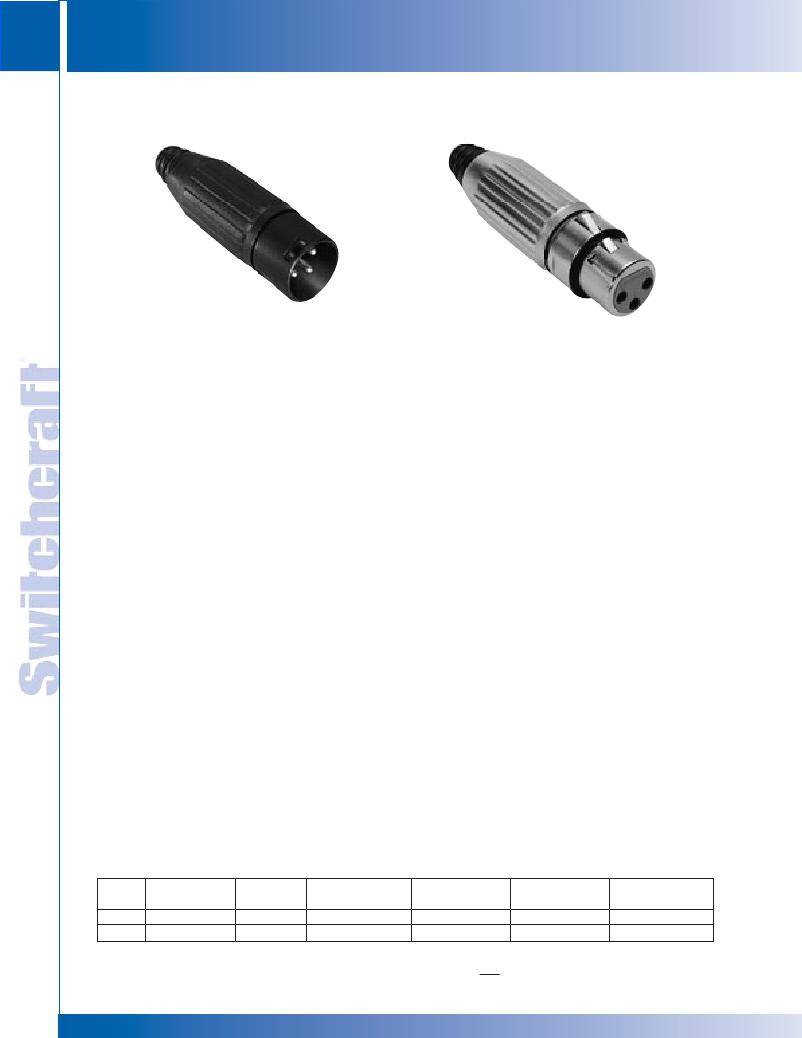

Switchcraft introduces the AAA Series or Q-G ? Twist XLR
FEATURES AND BENEFITS
connectors.The Q-G ? Twist Series is available in male or female cord
plug, 3 through 7 pins or contacts. The unique features are the easy
twist on combination handle/strain relief, and the reduced number of
parts to assemble. With the insert built into the front shell, and the
strain relief preloaded into the handle, the end user has only two
parts to assemble – slide the handle onto the cable, solder the
terminations, and twist on the handle. As the handle is tightened, the
?
?
?
?
?
?
?
Only two pieces to assemble
Easy twist on handle reduces assembly time
Rugged die-cast metal handle
Accepts cable OD’s (.100" – .285")
Black finish available
Gold-plated pins/contacts available
Lower cost plastic handle version available
strain relief tightens around the outer jacket of the cable. A ramp on
the strain relief keeps it from rotating around the cable jacket and
twisting the cable. The strain relief was designed to accommodate
the most popular cable sizes. A rugged die-cast metal handle insures
optimum protection, and increases signal shielding. Popular options
include black and gold finishes, as well as a lower cost plastic
handle version.
SPECIFICATIONS
APPLICATIONS
? Audio
? Medical
? Instrumentation
? Process Controls
4 Contact
ELECTRICAL
Contact Resistance: 50 milliohm maximum, per pole.
Current Rating @ 125VAC:
3 pole – 15A
4 pole –10A
#14 wire gauge solid
5 & 6 Contact
#16 wire gauge solid
7 Contact
#18 wire gauge solid
#16 wire gauge stranded
#18 wire gauge stranded
#20 wire gauge stranded
5 & 6 pole – 7.5A
7 pole – 5A
Insulation Resistance: 1,000 M ? , minimum.
Dielectric Withstanding Voltage: 1,000 V (rms)
Capacitance: ≤ 3 pF between pins and ≤ 6 pF
between pins and shell, maximum
MECHANICAL
Insertion/Withdrawal Forces: 10 lbs. maximum,
8 lbs. nominal / 7 lbs. maximum, 5 pounds nominal.
Wire Size:
3 Contact
#12 wire gauge solid #14 wire gauge stranded
CONNECTOR PART NUMBER SCHEME
MATERIAL
Shell: Die-Cast zinc with nickel finish or black chrome.
Handle: Die cast with nickel finish or black chrome.
Also black thermoplastic handle available.
O Ring: TPR (Thermoplastic rubber).
Insert Insulation: Molded thermoplastic.
Socket Contacts: Silver plated copper alloy tarnish resistant;
bifurcated on 3 and 4 contact types. Gold is available.
Pin Contacts: Silver plated copper alloy. Resists tarnishing,
and provides excellent electrical conductivity. Gold is available.
Latch lock: High strength die cast zinc.
Strain Relief: TPR
Flex Relief: TPR (Thermoplastic rubber)
Series
Pins/Contacts
Gender
Handle Material
Housing
Terminal
Z
Finish
Finish
AAA
3 -7 pins
3 -7 pins
F: Female
M: Male
P: Plastic
Blank: Metal
B: Black
Blank: Nickel
AU: Gold
Blank: Silver
New Strain Relief
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
